- Thermotron - Gross ITE Industries

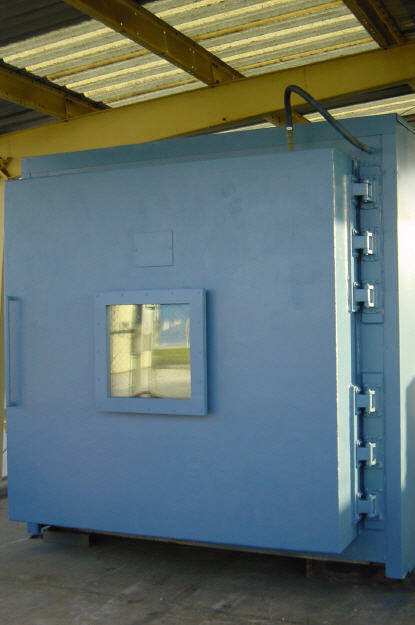

Altitude / Humidity / Temperature - Interior
Dimensions: 6' wide X 6' tall X 8' deep
- Altitude Range: 100,000' (150,000' with optional booster pump)
- Humidity
Range: 20% - 95% System utilizes commercial steam boiler rather than convention steam generator.
- Temperature Range:
-70C to +200C
- Controller: Dual Microstar & dual Honeywell chart recorders. Optional: JC Systems controller model#
2020 3 channel controller.
- Sensors: Sensotec Altitude Sensor & Wet Bulb/Dry Bulb
Optional Vaisala HMP234 humidity/dewpoint
transmitter suited for vacuum and high pressure.
- Electrical Control: Programmable Logic Controller by GE FUNAC

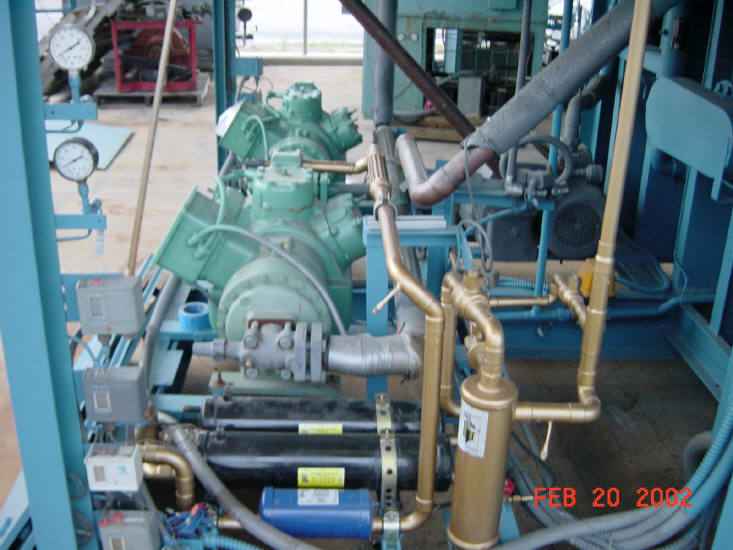

- Refrigeration:
Dual Carlyle 30 HP cascade water-cooled compressors. Utilizing R-23 & R-404A refrigerants.
- This unit underwent a
complete rebuild by Gross ITE in 1992 for Raytheon at the cost of $161,000.00. Unit was used for several months then placed
in storage. System ideally suited for atmospheric research, avionics testing, or Mil standards RTCA/DO-160D.
 |
|
